Settings for software limit switch (SLS) monitoring
A differentiation is made between the command value and the actual value software limit switch monitoring.
The command value software limit switch monitoring takes place in automatic operating mode in the look-ahead function and in manual operating mode in path operation.

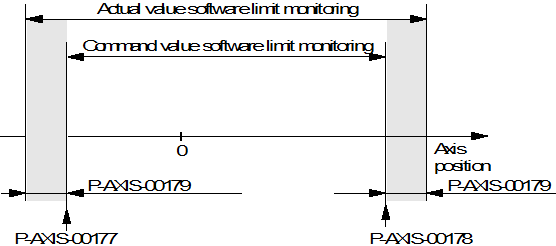

The actual value software limit switch monitoring is carried out in the position controller. The figure below shows the parameters for software limit switch monitoring.
Additional information
- Tolerance range for software limit switch (P-AXIS-00179)
- Positive software limit switch (P-AXIS-00178)
- Negative software limit switch (P-AXIS-00177)
- Activate command position software limit switch monitoring in position controller
- Behaviour of software limit switches (P-AXIS-00554)
- Switching software limit monitoring off / on (P-AXIS-00705)
- Logical axis number of the master axis for software limit switch dependence (P-AXIS-00558)
- Positive software limit switch of the dependent axis (P-AXIS-00559)
- Negative software limit switch of the dependent axis (P-AXIS-00560)
