Optimised polynomial smoothing (P-CHAN-00259)

P-CHAN-00259

Optimised polynomial smoothing for transitions in circular blocks

Description

If type 4 polynomial smoothing (#CONTOUR MODE [DEV...] ) is used, transitions with circular blocks can be traversed faster by additionally setting this parameter.

If jerk monitoring in polynomial blocks is selected (P-CHAN-00110, check_jerk_on_poly_path is 1 or 2), the optimisation smooths the curvature and therefore increases feed rate. Particular advantages result from tangential transitions in circular blocks.

Parameter

opt_contour_mode

Data type

UNS32

Data range

0: Inactive (default).

1: Optimised polynomial smoothing active.

2: Optimised polynomial smoothing active, also for orientation axes.

Dimension

----

Default value

0

Remarks



Example: Pocket milling cycle with polynomial contouring
Example: Pocket milling cycle with polynomial contouring

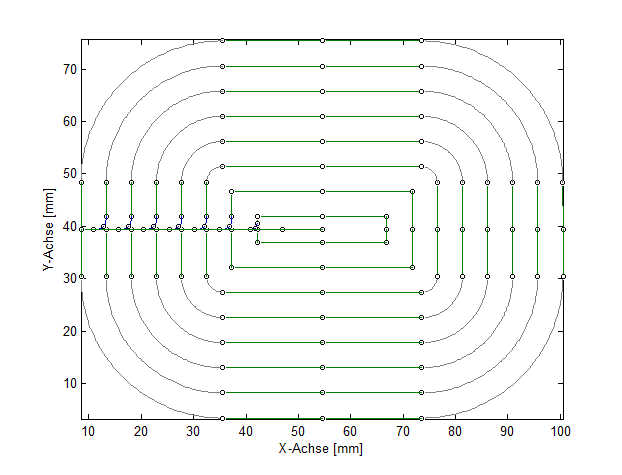

Feed along the contour with opt_contour_mode=0:
Feed along the contour with opt_contour_mode=0:
Feed along the contour with opt_contour_mode=1
Feed along the contour with opt_contour_mode=1

In this example, the reduction in machining time is 18%.
