Example 2a: Programming an axis-specific M function in extended syntax

Programing Example

prg_example

Axis-specific M function in extended syntax

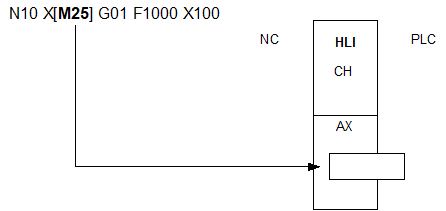

The M function M25 assigned in the block by programming the X axis is output via the axis-specific range of the HLI.

Initialisation in the channel parameter list:

m_synch[25]   0x0002

Programming a channel-specific M function
Programming a channel-specific M function
