Single step mode on block numbers

Block number

When single-step mode is enabled, the CNC stops before each new motion block (see P-CHAN-00015) and waits for an acknowledgement from the PLC.

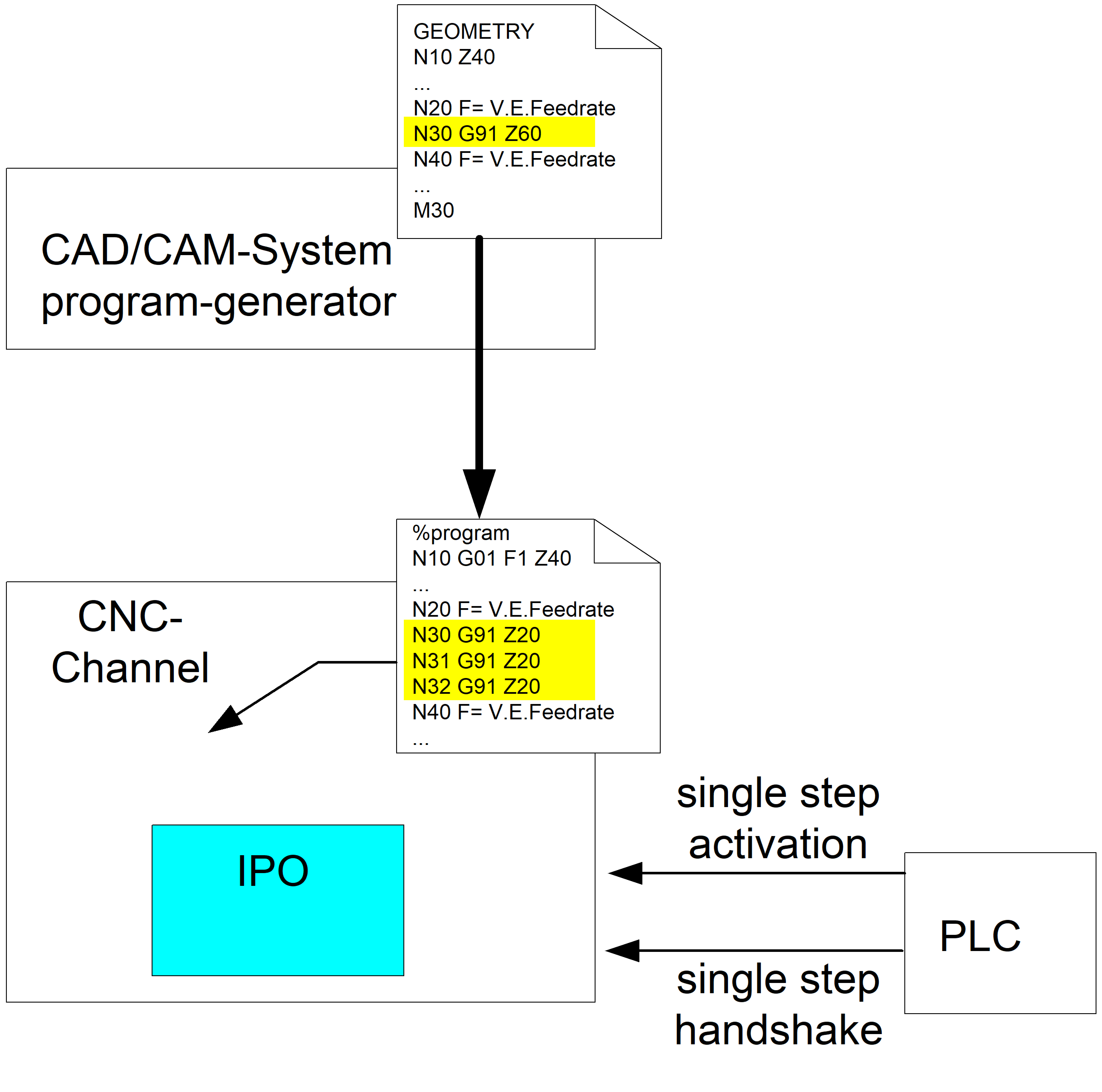

If the NC program was automatically generated by a post-processor based on CAD/CAM data, the original geometry information may result in several NC motion blocks. In this case a single step should correlate with the original granularity of CAD/CAM data and only stop at the original geometric resolution.

Another possible application case may be to explicitly disable single-step mode for individual blocks.

Syntax:
#SINGLE STEP [ RESOLUTION<value> ]	modal

A single item of geometric information may result in multiple NC motion blocks.

Block number related single-step resolution

Use the RESOLUTION option to define a block number-related single-step resolution:

0: Off, no single step related to block numbers,

Stop before each NC line

1: Single step stops before each new programmed NC block number

> 1: A stop is executed before each block which can be divided into an integer

with no remainder.

< 0: Impermissible value for single-step resolution, an error message

is output.

Programing Example

Single-step resolution RESOLUTION to block numbers was set to 10.

In this case a stop is executed before each block can be divided by 10 into an integer with no remainder.

No stop is executed in the area displayed in italics in single-step mode. The black lines show the single-step stop.

%single_step

N000 #SINGLE STEP [RESOLUTION = 10]

________________

N000 X0

________________

N010 X1

N011 X1.1

N012 X1.2

________________

N020 X2

________________

N030 X3

…

________________

N090 X9

N091 Y0

N092 Y1

N093 Y2

N094 Y3

N095 Y4

________________

N100 Y5

N101 Y6

N102 Y7

________________

N110 Y8

…

Notice

To ensure effective diagnosis, all NC lines should always be provided with a unique block number.

Programing Example

Block numbering with user resolution (steps of ten) and internal numbering (single-step width).

%single_step

N010 #SINGLE STEP [RESOLUTION = 10]

________________

N090 Y0

N091 Y1

N092 Y2

N093 Y3

N094 Y4

________________

N100 Y5

N101 Y6

N102 Y7

________________

N110 Y8

…
