Parameterisation
Required input parameters
Input parameters | Description |
@P1 | Reference plane (absolute) |
@P2 | Retraction plane (absolute) |
@P3 | Safety clearance in Z (relative to reference plane/machining height) |
@P4 | Pocket depth (relative to reference plane) |
@P5 | Maximum infeed in Z |
@P6 | Maximum infeed in XY (Maximum V.G.WZ_AKT.R is recommended to avoid residual material) |
@P50 | Identification number of the pocket contour |
Optional input parameters
Input parameters | Description |
@P7 | Pitch of plunge helix Default value = 10% of tool radius |
@P8 | Radius of plunge helix Default value = 50% of tool radius |
@P15 | Finishing allowance at base Default value = 0 |
@P16 | Finishing allowance at edge Default value = 0 |
@P20 | Feed rate for roughing for milling in the XY plane (specified in mm/min, inch/min) |
@P21 | Feed rate for roughing in Z (specified in mm/min, inch/min) |
@P22 | Feed rate for finishing for milling in the XY plane (specified in mm/min, inch/min) The default value is the feed rate for roughing |
@P23 | Feed rate for finishing for infeed in Z (specified in mm/min, inch/min) The default value is the feed rate for finishing for milling in the XY plane |
@P25 | Spindle speed for finishing (specified in rpm) |
@P30 | Machining direction "ClimbMilling" or 0: Down milling (default) "UpCutMilling" or 1: Up milling |
@P31 | Machining mode: "Roughing" or 1: Roughing "Finishing" or 2: Finishing "Roughing+Finishing" or 3: Roughing and finishing (default value) |
@P32 | Feed mode in Z 1: Vertical 2: Helical (default) |
@P135 | Maximum infeed in XY for edge finishing Default value is the maximum infeed in XY for roughing |
@P170 | Maximum infeed in XY for base finishing Default value is the maximum infeed in XY for roughing |
@P171 | Feed rate for plunging in previously milled areas Default value is the feed rate for roughing for the infeed in Z |
@P51 | Identification number of an island contour |
@P52 | Identification number of an island contour |
@P53 | Identification number of an island contour |
@P54 | Identification number of an island contour |
@P55 | Identification number of an island contour |
@P56 | Identification number of an island contour |
@P57 | Identification number of an island contour |
@P58 | Identification number of an island contour |
@P59 | Identification number of an island contour |
@P60 | Identification number of an island contour |

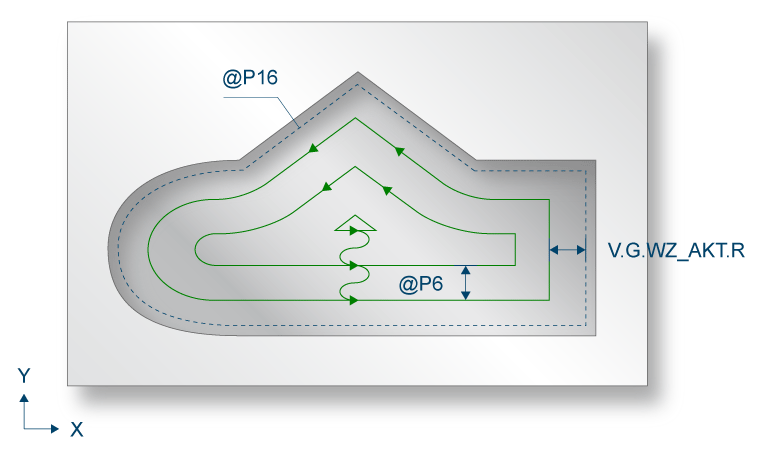

The function of the parameters acting in the XY plane is derived largely from the graphic below:
It is recommended to use the Syntax check.to verify whether the input parameters are correctly assigned.
Parameters which mainly refer to the Z axis are displayed in the graphic below:
