Display data

Relevant display data for the "real-time loops" function can be read out via the HLI. The following data is available:

• dist_prog_start
• block_count_r
• inside_rt_loop_r
• rt_loop_count_r

Programing Example

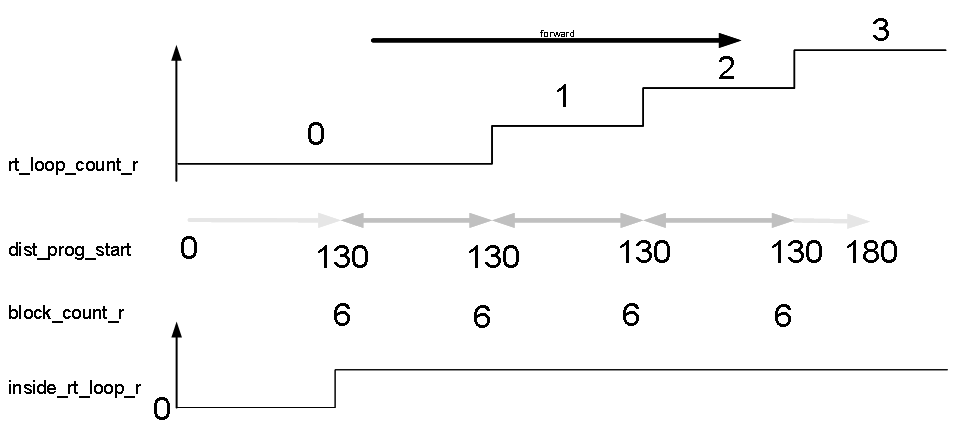

Differences in display data for #RT WHILE with and without
MODULO option

The associated display data are displayed on the basis of the following NC program.

%RtLoop

N0001 X10

N0002 X30

N0003 X50

N0004 X90

N0005 X130

N0006 #RT WHILE [MODULO]

N0007 X150

N0008 X170

N0009 X200

N0010 X210

N0011 X230

N0012 #RT ENDWHILE
