MC_AddAxisToGrp
The function block adds an axis to an axis group. This is an administrative FB, i.e. no motion job is generated.
The added axis is identified within the axis group by a unique name and an index. The two values are transferred to the FB by the data structure IDENT_IN_GROUP_REF (see Section Axis group reference AXES_GROUP_REF).

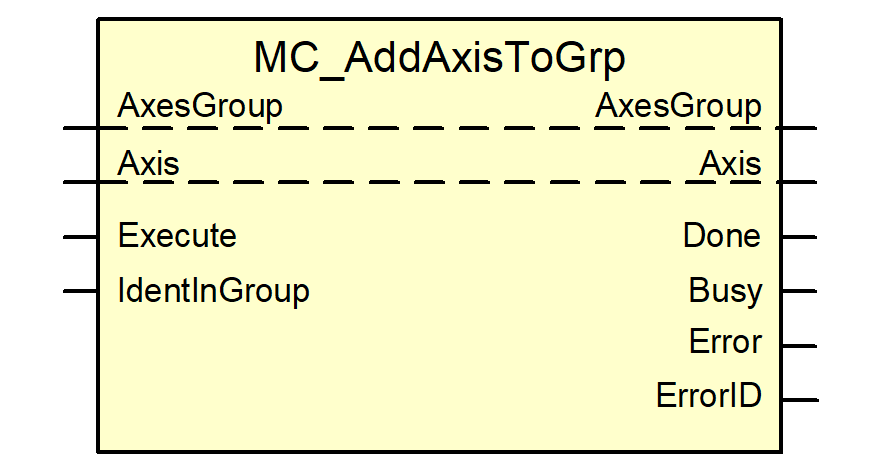

Block diagram
FB parameters
VAR_IN_OUT | ||
Variable name | Data type | Description |
AxesGroup | AXES_GROUP_REF | Axis group reference |
Axis | AXIS_REF | Axis reference |
VAR_INPUT | ||
Variable name | Data type | Description |
Execute | BOOL | The axis is added to the axis group on a rising edge. |
IdentInGroup | IDENT_IN_GROUP_REF | Identification of the axis in the axis group. |
VAR_OUTPUT | ||
Variable name | Data type | Description |
Done | BOOL | TRUE indicates that axis was added to the axis group. |
Busy | BOOL | TRUE indicates that the FB is executing a job. |
Error | BOOL | TRUE indicates that an error occurred. |
ErrorID | WORD | Error code |
Notice
The following conditions must be met to permit this function block to work correctly when the axis reference at the “Axis” input is an axis:
The spindle axis must be notified to the NC channel by specifying it in the channel parameter list (see [FCT-S1//NC spindle]).
The identifier to address the spindle in the channel and defined by the channel parameter P-CHAN-00007 must be formed from the letter “S” followed by the logical axis number of the spindle (P-CHAN-00036). For example, if P-CHAN-00036 = 2, then S2 must be specified for P-CHAN-00007.
