With ISG-virtuos, you cover the creation and holistic use of simulation models from sales through digital engineering to the operating phase - and all this with just one simulation model. In addition to model-in-the-loop (MiL) and software-in-the-loop (SiL) simulation, we also enable hardware-in-the-loop (HiL) simulation, in which the behavior of the components, machines and systems used, including the fieldbuses used, is simulated in deterministic control real time.
Simulation ensures extensive testing and optimization of your PLC programming of complex plants or robot systems, e.g. during virtual commissioning, saving you important time and resources in your projects.
ISG is your partner for the introduction of simulation technologies in your company. Through years of experience in consulting and implementation of various customer projects, we have refined our approach to the introduction of simulation software to new customers. In order to move from the pilot phase to the productive phase as quickly as possible while still achieving reliable results, we have developed the so-called realization workshop. Here, you not only build up the corresponding the know-how regarding simulation technology, but also implement your first own plant and can thus get extensively involved in the topic of digital twin and virtual commissioning.
ISG-virtuos is composed of basic functions, option and technology packages and can thus be extended at will from simple machine applications to complex interlinked plants within the scope of a factory simulation and their virtual commissioning.
Here you will find our ISG-virtuos basic functions explained in more detail.
The Windows Solver is a runtime environment for the execution of simulation models in Windows real-time (approx. >10ms). It enables the testing of production scenarios as software-in-the-loop (SiL) simulation, e.g. by connecting virtual controllers like SIEMENS PLCSIM Advanced, SINUMERIK ONE and KUKA OfficeLite.
Real-time solvers (or real-time operating systems) are runtime environments for executing virtual models in deterministic real-time (<1ms). This enables the testing of production scenarios as hardware-in-the-loop (HiL) simulation by connecting real controllers via fieldbus in the context of virtual commissioning and as a digital twin accompanying production.
The ISG-virtuos option packages offer additional special applications besides the basic functions. With these packages, on the one hand, the simulation scope can be increased to be able to perform even more extensive simulations, but also the real-time material flow physics library (MFphys) can be extended by additional packages, such as the Mover and AGV and Tool Handling libraries.
With the tool handling library, tool handling between tool magazines, spindles and handling systems can be set up and simulated. Hence, the tool-handling-library is an extension of the real-time-material-flow-library.
Extension of the real-time material flow library. For the simulation of processing machines, such as milling applications, the removal of material by tools can be visualized in 3D and evaluated later.
Extension of the real-time material flow library. Extension of the material flow simulation with functions for coupling and decoupling materials, as well as for mapping assembly processes, such as attaching and removing screws.
The separation of materials constitutes an extension of the real-time-material-flow-library. The functions enable the simulation of chipping and separating materials.
The optional ISG-virtuos technology packages extend the real-time simulation with additional features to increase performance, such as the real-time multisolver package for simulation on multicore systems and the automated creation of simulation models through corresponding ECF/ISGMD and JavaScript interfaces.

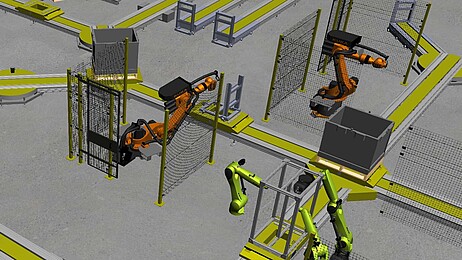

This optional technology package also allows multiple real-time solvers to be integrated into the simulation, providing an enormous increase in performance and scaling of the plants through parallelized real-time simulation on multicore processors in the real-time operating system.
With the interfaces for model generation, ECF/ISGMD and JavaScript, they can automatically generate individual simulation models in the development process and thus massively reduce the required modeling times.
"To ensure an efficient start-up of our production lines [...] we rely, among other things, on the VIBN of complex plants and production processes. In the operating phase, it offers the possibility to efficiently integrate software-intensive changes in a few days without subsequent loss of production. Crucial for this is both the use of a flexible simulation tool with open interfaces and an extensive component library to reduce modeling time."
"We are convinced by the concept of simulation-based engineering. This allows processes to be parallelized as early as the development phase. The quality of the control programs, design and configuration data can also be tested in advance on the virtual prototype. Thanks to the modular design principle with reusable modules and the numerous test functions, we have been able to significantly simplify and accelerate many of our processes, especially the commissioning of our plants.
